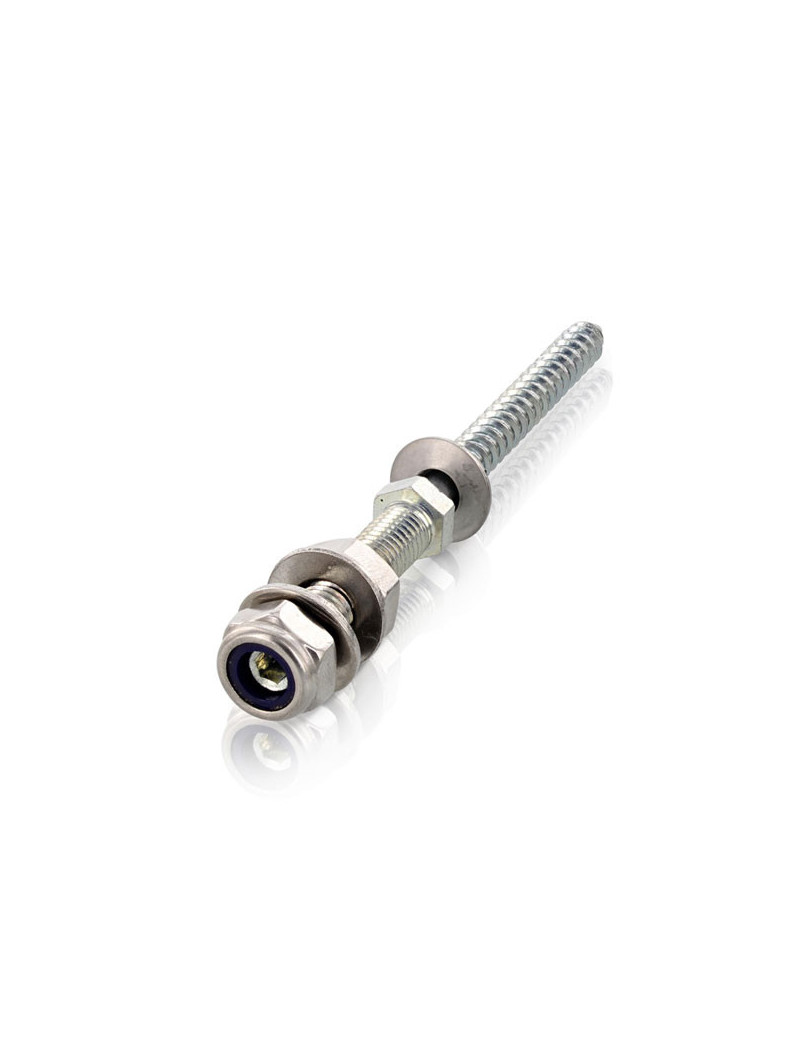

Solar fastener type A DS with point and sealing washer M8,4x80/50 AISI304 stainless steel
    • Solar fastener type A DS with point and sealing washer M8,4x80/50 AISI304 stainless steel
    • Solar fastener type A DS with point and sealing washer M8,4x80/50 AISI304 stainless steel
    • Solar fastener type A DS with point and sealing washer M8,4x80/50 AISI304 stainless steel
    • Solar fastener type A DS with point and sealing washer M8,4x80/50 AISI304 stainless steel
    • Solar fastener type A DS with point and sealing washer M8,4x80/50 AISI304 stainless steel

    Solar fastener type A DS with point and sealing washer M8,4x80/50 AISI304

    €8.75


    €8.75 tax 19% incl.

    ( €7.35 tax excl. )
    d=M8,4
    lg=80
    lm=50
    l=136
    l1=70
    Clamp. area=0-40
    Drive=SW 5

    Quantity
    Buy Now
    IN STOCK
    equalizer Add to Compare
    straighten Size guide

      Sicherheitsrichtlinien

    (bearbeiten im Modul "Kundenvorteile")

      Lieferbedingungen

    (bearbeiten im Modul "Kundenvorteile")

      Rückgabebedingungen

    (bearbeiten im Modul "Kundenvorteile")

    Stainless steel solar fastener type A DS with point and sealing washer M8,4x80/50 AISI304

    USES:

    • For timber substructures with captive sealing washer, including caps.

    Technical information:

    • Recommended screw length = trapeze profile height/sandwich thickness + 20mm
    • Predrilled diameter in timber substructures = 6mm
    • The building authority approval should always be noted.
    A29182ADSM8.4X80/50

    Data sheet

    Material
    Stainless steel AISI304
    Drive
    SW 5
    DIN / ISO
    9182
    Drive form
    Hexagon socket
    Thread
    M8.4
    Thread length
    70mm
